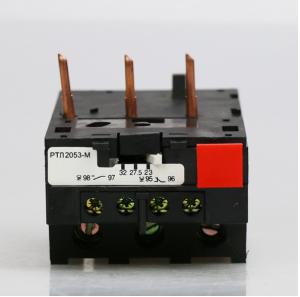

LR2-D23 37A Electric motor thermal magnetic overload protection relay
1.picture
2,Application
JR1 series thrtmal relay is suitable for thermal protection in the circuit with AC 50 or 60HZ,Voltage up to 550V,motor power up to 45KW or less.It has different and automatic temperature compensating function,It can be contactor and can also be fixed independently,
The product is made in accordance with IEC29201,
3.SPECIFICATIONS
| TYPE | Adjusting range of current(A) | Control power(AC3)(KW) | Plug contactor |
| 220V | 380V | 410V | 440V | 660V |
| LR1-D09301 | 0.1-0.16 | | | | | | LC1-D09-25 |
| LR1-D09302 | 0.16-0.25 | | | | | | LC1-D09-25 |
| LR1-D09303 | 0.25-0.49 | | | | | | LC1-D09-25 |
| LR1-D09304 | 0.40-0.63 | | | | | 0.37 | LC1-D09-25 |
| LR1-D09305 | 0.63-1 | | | | | 0.55 | LC1-D09-25 |
| LR1-D09306 | 1-1.6 | | 0.37 | | 0.55 | 0.7-1.1 | LC1-D09-25 |
| LR1-D09307 | 1.6-2.5 | 0.37 | 0.55-0.75 | 1.1 | 0.75-1.1 | 1.5 | LC1-D09-25 |
| LR1-D09308 | 2.5-4 | 0.55-0.75 | 1.1-1.5 | 1.5 | 1.5 | 2.2-3 | LC1-D09-25 |
| LR1-D09310 | 4-6 | 1.1 | 2.2 | 2.2 | 2.2 | 4 | LC1-D09-25 |
| LR1-D09312 | 5.5-8 | 1.5 | 3 | 3-3.7 | 3-3.7 | 5.5 | LC1-D09-25 |
| LR1-D09314 | 7-10 | 2.2 | 4 | 4 | 4 | 7.5 | LC1-D09-25 |
| LR1-D09316 | 10-13 | 3 | 5.5 | 5.5 | 5.5 | 10 | LC1-D09-25 |
| LR1-D16321 | 13-18 | 4 | 7.5 | 9 | 9 | 10 | LC1-D09-25 |
| LR1-D25322 | 18-25 | 5.5 | 11 | 11 | 11 | 18.5 | LC1-D09-25 |
| LR1-D40353 | 23-32 | 7.5 | 15 | 15 | 15 | 22 | LC1-D40,50,60 |
| LR1-D40355 | 30-40 | 10 | 18.5 | 22 | 22 | 30 | LC1-D40,50,60 |
| LR1-D63357 | 38-50 | 11 | 22 | 25 | 25 | 37 | LC1-D40,50,60 |
| LR1-D63357 | 48-57 | 15 | 25 | 30 | 30 | 35 | LC1-D40,50,60 |
| LR1-D63361 | 57-66 | 18.5 | 30 | 37 | 37 | 55 | LC1-D40,50,60 |
| LR1-D80363 | 63-80 | 22 | 33-37 | 40-45 | 40-45 | 59-63 | LC10D80 |
Yueqing Kampa Electric Co.,Ltd. is Established in 1990.Has variety of goods ,such
as Relay,Circuit breaker,Switches,Thermocouple,Thermostat,Temperature controller,
Switch power supply,AVS,Heat sink,Heater,Distribution box,Junction box and so on.
We are manufacturer and have ten years experience in Electrical industry.
A.Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.
B.After sales service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 12 months warranty after goods arrive.
We Promise All Parts Available in lifetime use.
We Positively Revert Your Complain Within 48hours.
C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With AllTechnical Support From Engineer Team.
