CR18-8AO Capacitive Proximity Sensors AC 2-wire 100-240VAC NO M18 Position Sensor Switch

Name: CR188AO Capacitive Proximity Sensors AC 2wire 100240VAC NO M18 Position Sensor Switch
Brand: KAMPA
Price: 5.00 USD

Quality CR18-8AO Capacitive Proximity Sensors AC 2-wire 100-240VAC NO M18 Position Sensor Switch for sale

Model Number : CR18-8AO

Type : Capacitive Proximity Sensor

Place of Origin : Zhejiang, China

Brand Name : KAMPA

Usage : Position Sensor

Theory : Capacitive Sensor

Output : Switching Transducer

Description : Capacitive Proximity Sensor

Product name : Capacitive Proximity Sensor

Model : CR18-8AO

Wire type and power : AC 2-wire 100-240V

Operating voltage : 85-264VAC

Sensing side diameter : M18

Sensing distance : 8mm

Setting distance : 0 to 5.6mm

Control output : AO/AC

Standard sensing target : Iron 50*50*1mm

Response frequency : 20Hz

Packaging Details : standard export carton packing.

Port : Ningbo

Supply Ability : 10000 Piece/Pieces per Month

MOQ : 100 Pieces

Price : $5.00/Pieces 100-499 Pieces

Contact Now

Specification

Product name	Proximity Sensor
Type	Capacitive Type
Place of origin	Zhejiang,China
Brand name	KAMPA
Usage	Position Sensor
Model number	CR18-8AO
Wire type and power	AC 2-wire type 100-240VAC
Sensing side diameter	M18
Sensing distance	8mm
Standard sensing target	50×50×1mm(iron)
Response frequency	20Hz
Current specification	Leakage current: Max. 2.2mA
Control output	NO (Normally Open)
Protection structure	IP66
Protection circuit	Surge protection circuit
Material	PA6
Environment_Ambient temperature	-25 to 70℃, storage: -30 to 80℃
Environment_Ambient humidity	35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance)	Max. 20% of sensing distance

Specifications of CR Series

Installation: Non-flush type

Wire type	Model	Control output	DIA. of sensing side	Sensing distance	Setting distance
AC 2-wire	CR18-8AO CR18-8AC	NO (Normally Open) NC (Normally Closed)	∅18mm	8mm	0~5.6mm
AC 2-wire		CR30-15AO CR30-15AC	NO (Normally Open) NC (Normally Closed)	∅30mm	15mm	0~10.5mm

Hysteresis	≤20% of sensing distance
Standard sensing target	Iron 50501mm
Response frequency	20Hz
Affection by temperature	≤±20% for sensing distance at ambient temperature 20℃
Indicator	Operation indicator (red)
Appearance	Cylindrical
Power supply	100-240VAC~50/60Hz, operating voltage 85-264 VAC~
Leakage current	≤ 2.2mA
Control output	≤ 5 to 200mA
Residual voltage	≤ 20V
Protection circuit	Surge protection circuit
Ambient temperature	-25 to 70℃, storage: -30 to 80℃(non-freezing or non-condensation)
Ambient humidity	35 to 95%RH, storage: 35 to 95%RH(non-freezing or non-condensation)
Protection structure	DIA. of sensing side ∅18mm: IP66(IEC standard)/ DIA. of sensing side ∅30mm: IP65(IEC standard)
Connection	Cable type
Cable spec.	DIA. of sensing side ∅18mm: ∅4mm, 2-wire, 2m DIA. of sensing side ∅30mm: ∅5mm, 2-wire, 2m
Wire spec.	AWG 22 (0.08mm,60-wire), insulator DIA.: ∅1.25mm
Material	Standard type cable (black): PVC
		DIA. of sensing side ∅18mm: case/nut: PA6
		DIA. of sensing side ∅30mm: case/nut: nickel-plated brass washer: nickel-plated iron sensing side: PBT

Product Description

CR18-8AO Capacitive Proximity Sensors AC 2-wire 100-240VAC NO M18 Position Sensor Switch

Company Profile

Yueqing Kampa Electric Co., Ltd. is Established in 1990.Has variety of goods,such as Relay,Circuit breaker,Switching Power Supply,Time Relay,Distribution Box,Proximity Switch, temperature controller, contactor, solid state relay, Mould Case Circuit Breaker, hour meter, electric power relay and so on. Most of them are exported to Europe , America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts.

FAQ

1. who are we?
We are based in Zhejiang, China, start from 2009,sell to Africa(56.00%),South America(25.00%),Eastern Europe(10.00%),Southeast Asia(5.00%),Oceania(2.00%),Mid East(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Solid state relay,Proximity sensor,Surge protector device

4. why should you buy from us not from other suppliers?
1. 15years' export experience. 2. We can help one electric shop to arrange the products. 3. OEM, ODM available. Quality product with Quality service. 7*24 hours standby. 4. Young sales but professional.

5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken:English,Chinese

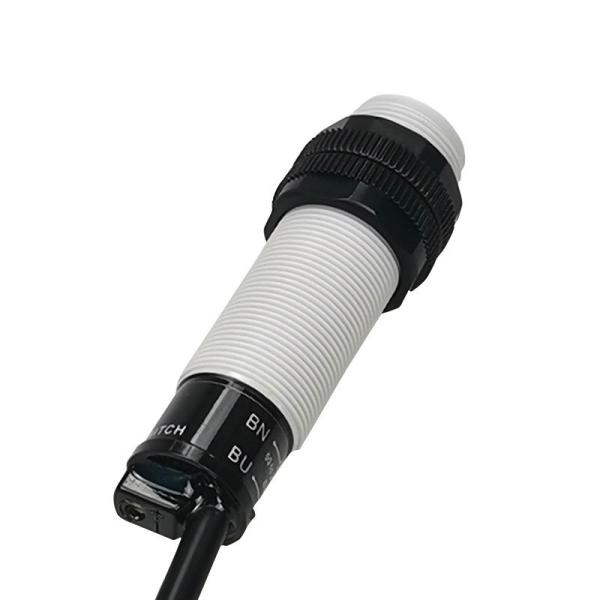

CR18-8AO Capacitive Proximity Sensors AC 2-wire 100-240VAC NO M18 Position Sensor Switch Images
